ATEX Zone 2/22
IECEx
Class I, Div II

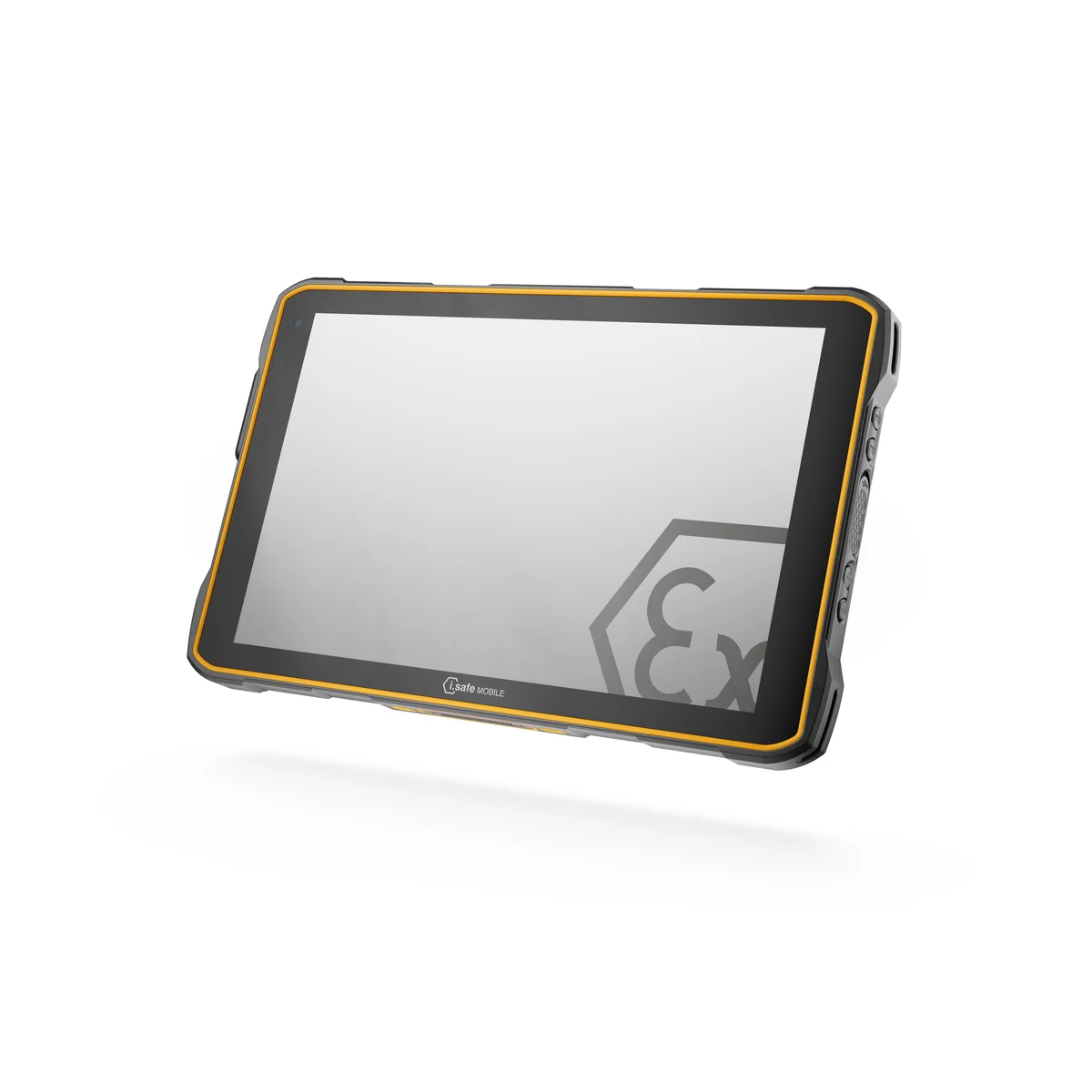

i.safe MOBILE IS945.2 ATEX Zone 2/22 Rugged 10.1-inch Windows Tablet from the front

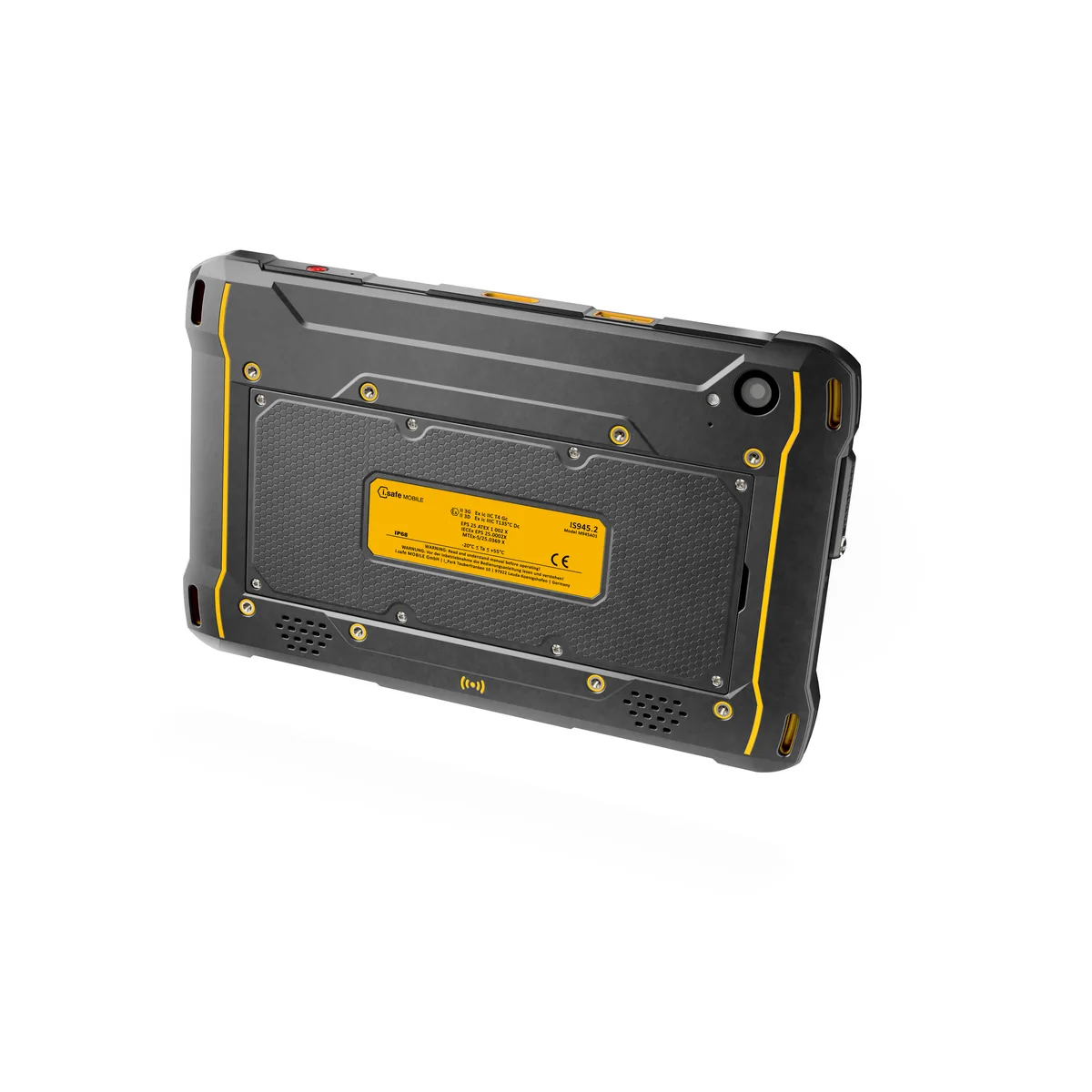

i.safe MOBILE IS945.2 — ATEX Zone 2/22 Rugged 10.1-inch Windows Tablet from the back

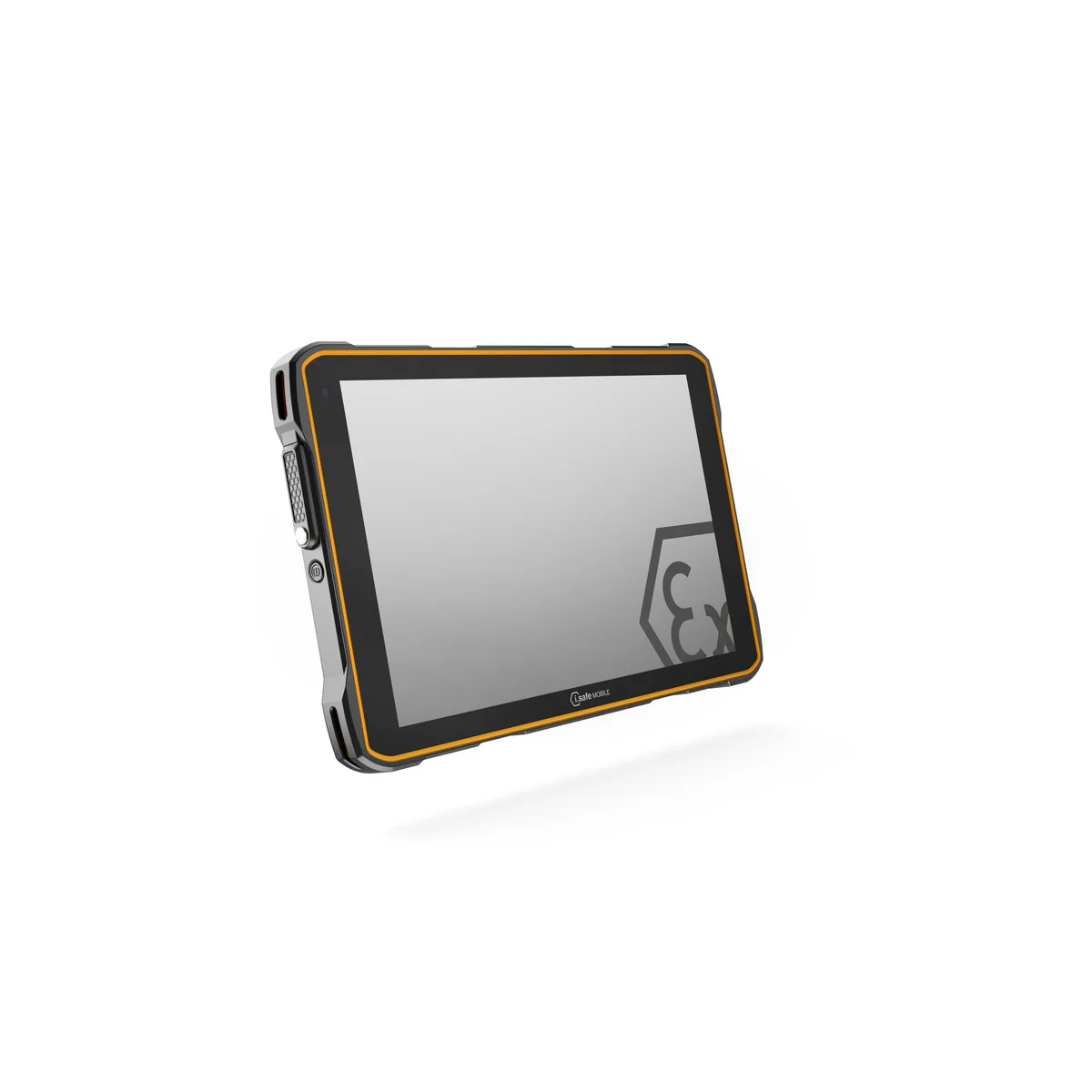

i.safe MOBILE IS945.2 — ATEX Zone 2/22 Rugged 10.1-inch Windows Tablet from the side

i.safe MOBILE IS945.2 | Explosion Proof Windows Tablet

€2,595.00

The IS945.2 is a rugged, explosion-proof Windows tablet designed for use in hazardous areas (ATEX Zone 2/22). Built on the same proven 10.1-inch hardware platform as its Zone 1/21 sibling, the IS945.1, it delivers full Windows 11 IoT Enterprise for Arm64 performance in a housing certified for less demanding hazardous-area classifications — ideal for perimeter zones, refinery boundaries, and other Zone 2/22 industrial environments

Categories: ,

Description

Purpose-built for ATEX Zone 2/22 hazardous areas, the IS945.2 features the same 10.1-inch Corning® Gorilla® Glass 3rd generation display as its Zone 1/21 sibling — 1200 × 1920 resolution and glove-usable — delivering clear visuals for maintenance documentation, inspection workflows, and productivity apps in perimeter and low-frequency-exposure zones.

It runs Windows 11 IoT Enterprise for Arm64, powered by a Qualcomm® QCM6490 octa-core processor with 8 GB RAM and 128 GB internal storage, expandable via microSD. The tablet supports 4G LTE, 5G NR, Wi-Fi 6, and Bluetooth 5.2 for seamless connectivity, along with full multi-GNSS positioning (GPS, A-GPS, Glonass, A-Glonass, BeiDou, Galileo), a 12 MP autofocus rear camera, and a 5 MP fixed-focus front camera for documentation and video calling.

With an IP68 rating, MIL-STD-810H certification, and a replaceable 8,160 mAh battery, the IS945.2 withstands water, dust, drops, and extreme temperatures from -20°C to +55°C — reliable across refinery perimeter areas, warehouse Zone 2 classifications, chemical plant boundary zones, and other applications where a Zone 2/22 tablet is the right specification.

Features:

  • Certified for ATEX Zone 2/22 and IECEx
  • Additional certifications: NEC500 Class I, II, III Division 2 (requested), IA (South Africa)
  • Operating system: Windows 11 IoT Enterprise for Arm64
  • Qualcomm® QCM6490 octa-core processor with 8 GB RAM and 128 GB internal storage
  • Expandable storage: microSD card supported
  • 10.1-inch Corning® Gorilla® Glass 3rd generation display, 1200 × 1920 resolution, glove-usable
  • Connectivity: 4G LTE, 5G NR, Wi-Fi 6, Bluetooth 5.2
  • Multi-GNSS positioning: GPS, A-GPS, Glonass, A-Glonass, BeiDou, Galileo
  • Cameras: 12 MP autofocus rear, 5 MP fixed-focus front
  • Battery: 8,160 mAh, replaceable
  • Ports: USB-C, 16-pin ISM interface, 12-pin ISM interface (for optional docking station)
  • Rugged design: IP68 dust-/waterproof, MIL-STD-810H certified
  • Operating temperature: -20°C to +55°C
  • Sensors: accelerometer, gyroscope, light, magnetic, proximity, pressure
  • Dimensions: 266.17 × 168.46 × 19.82 mm | Weight: 1,059 g
  • VESA 100 mounting compatibility
  • Amplified loudspeaker for noisy industrial environments
  • Programmable red function key and right-side function keys via keyboard manager utility

Ex Marking

Marking Countries Ex Marking
ATEX Europe + Globally Recognized and Accepted II 3G Ex ic IIC T4 Gc     II 3D Ex ic IIIC T135°C Dc
IECEx IECEx (International) approved Ex ic IIC T4 Gc     Ex ic IIIC T135°C Dc
NEC500 NEC500 (North America) — requested Class I, II, III Div. 2 Groups A B C D F G T4
CERT IA (South Africa) approved Ex ic IIC T4 Gc     Ex ic IIIC T135°C Dc

Included Accessories:

  • Tablet
  • Battery
  • Hand Strap
  • USB-C Cable
  • Power Adapter universal
  • Screwdriver
  • Display Protection Foil
  • Safety Instructions

Optional Accessories:

  • IS-MC945 Multi Charger Set
  • Docking Station (12-pin ISM)
  • SAFE PROTECTOR 2.0 USB-C Cable
  • Leather Case (black or yellow)
  • Shoulder Strap 30 cm
  • 4-Point Harness System Tablet
  • IS-Stylus

Additional information

Brand

Operating System

Processor

Qualcomm® QCM6490 Octa Core
Memory

8 GB RAM, 128 GB internal memory, microSD memory up to 128 GB
Supported frequency bands

4G LTE-FDD: B1/2/3/4/5/7/8/12 with MFBI/13/14/17/20/25/26/28A/28B/29/30/66/68/71
4G LTE-TDD: B38/39/40/41/42/43/48
5G NR: n1/n2/n3/n5/n7/n8/n12/n14/n20/n25/n28/n30/n38/n40/n41/n48/n66/n71/n77/n78/n79
Dimensions

Size: 266,17 x 168,46 x 19,82 mm, weight: 1059 g
Display

10,1“ (25,65 cm) Corning® Gorilla® Glass 3rd generation, 1200 x 1920 pixels, usable with gloves
Battery

8160 mAh, replaceable
Camera

12 MP AF rear camera, 5 MP FF front camera
SIM support

1 nano SIM + eSIM
Connections

Wi-Fi® 6: IEEE 802.11 a/b/g/n/ac/ax/e/k/r/v
Bluetooth® 5.2
GPS, A-GPS, Glonass, A-Glonass, Beidou, Galileo
Near Field Communication (NFC)
Ports in/out

16-pin ISM interface
12-pin ISM interface (Docking Station: optional accessory)
USB-C
Sensors

Accelerometer, Gyroscope, Light, Magnetic, Proximity, Pressure sensors
Geographic Certification

, ,

Zone Classification

, ,

PDF Datasheet Viewer

DOC_PRO_MD_i.safe_MOBILE_IS945.2-A4-datasheet_1079MD01__SEN__AWEB__V7

Geographic Suitability

Check the top-left corner of the product image for certifications. For the latest details, refer to the datasheet or contact us. Generally, these certifications apply to the following regions:

Certification Geography
NEC/CEC (Class/Division) USA, Canada
NEC/CEC (Class/Zone) USA, Canada
ATEX Mandatory in EU, EEA, Turkey and United Kingdom.
Accepted in most countries not listed elsewhere in this table.
INMETRO Brazil (based on IECEx)
IECEx Mandatory in Australia and Israel.
Accepted in most countries not listed elsewhere in this table.

Check our comprehensive guide on explosion proof equipment certifications and where they're recognized.

Downloads

NEC Certificate

EU – Type Examination Certificate

IECEx Certificate Of Conformity

IS945.2 Datasheet
