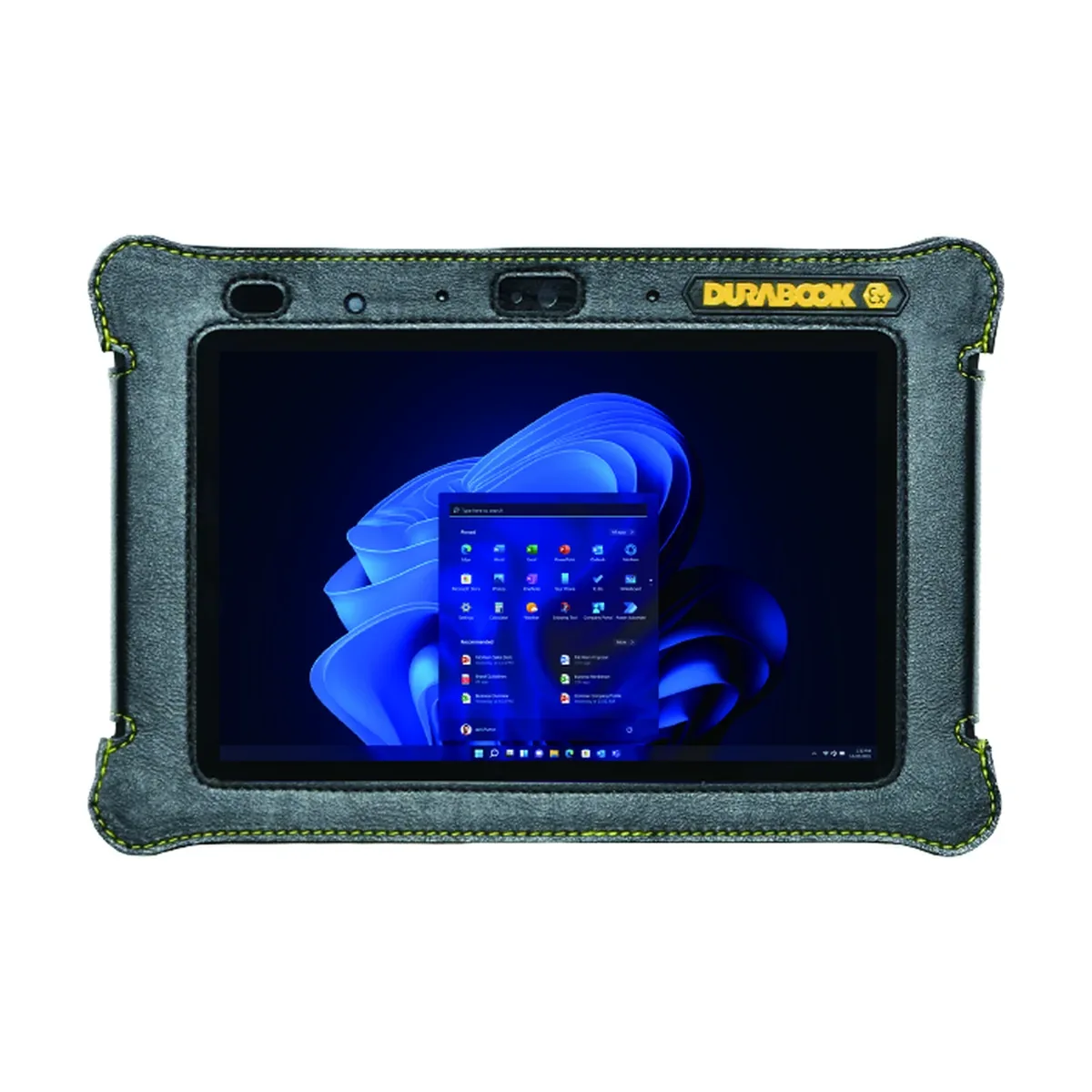

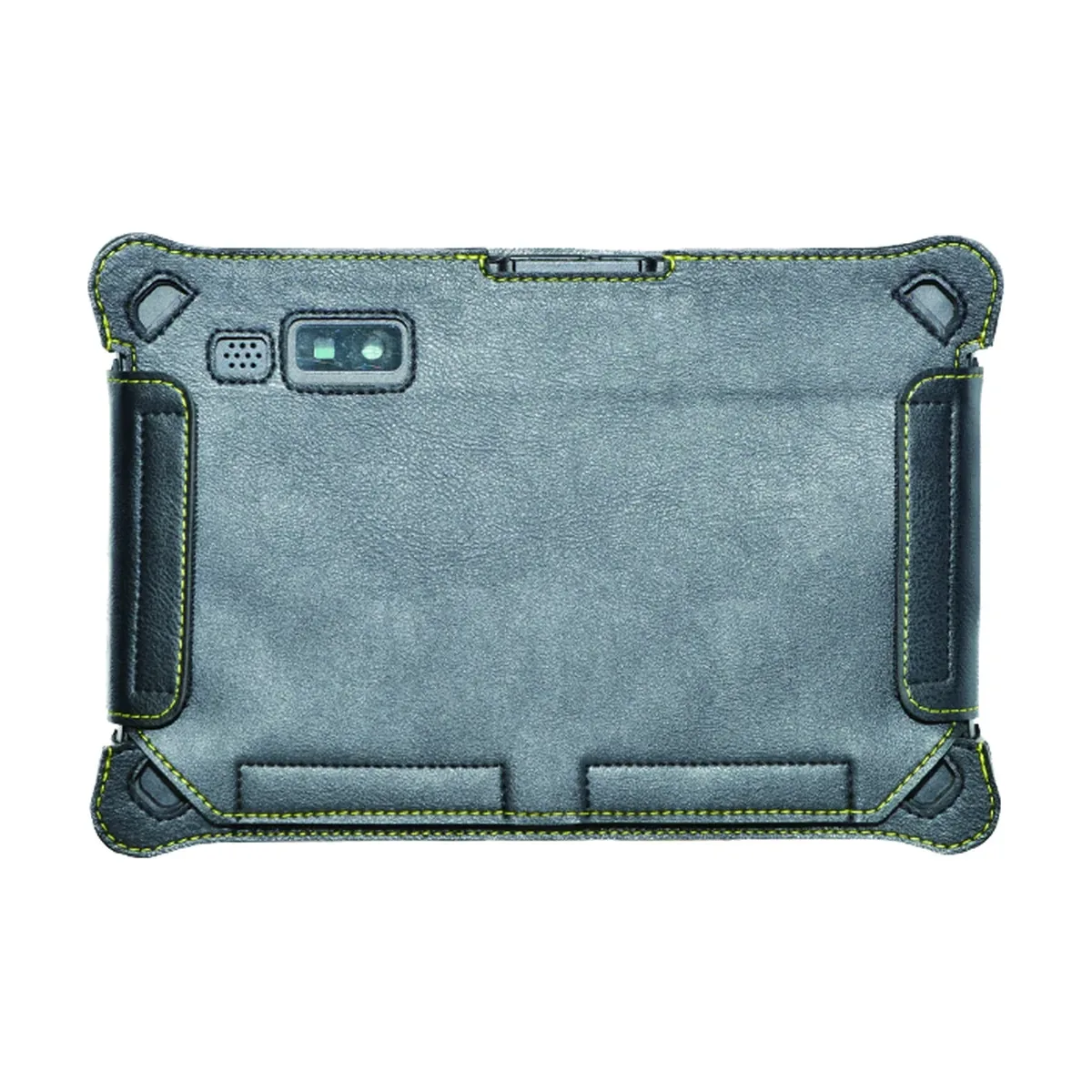

Durabook R8-EX Tablet
€2,135.00
Art. no. R8H501DA_AXE
| Ex-marking | Ex II 3G Ex ic IIC T4 Gc | Ex II 3D Ex ic IIIB T135°C Dc |
| Certification | ATEX Zone 2/22 |
| OS | Windows 11 Pro 64-bit |
| Size | 8.0″ · glove operation |
| Camera | 2 MP front | optional 11 MP AF rear with flash |
| Connectivity | Wi-Fi 6E · Bluetooth 5.3 · Thunderbolt 4 · USB-C · optional GPS / 4G LTE |
| Battery | 3600 mAh |
| Warranty | 3-year limited warranty |
| Availability | Built to order · lead time on request |
Description
Configurations & prices
| Configuration | Part number | Price |
|---|---|---|
| Pentium Gold 8500 · 8 GB · 128 GB · Wi-Fi 6E + BT 5.3 · standard battery | R8H501DA_AXE | € 2.135 |
| Core i5-1230U vPro · 8 GB · 128 GB · Wi-Fi 6E + BT 5.3 · swappable battery | R8H1P1DA_BXE | € 2.620 |
Durabook R8-EX Tablet · ATEX Zone 2/22
The Durabook R8-EX Tablet is an explosion-protected device from Durabook, certified for ATEX Zone 2/22. All specifications below are taken from the official Durabook datasheet.
Why the R8-EX Tablet?
- Ex II 3G Ex ic IIC T4 Gc | Ex II 3D Ex ic IIIB T135°C Dc
- Windows 11 Pro 64-bit
- Intel Wi-Fi 6E AX211 (802.11ax), Bluetooth 5.3, Thunderbolt 4, USB 3.2 Gen 2 Type-C (DisplayPort), microSDXC, Nano-SIM, 20-pin docking connector; optional dedicated GPS or GPS + 4G LTE multi-carrier, optional USB-A, optional 1D/2D barcode reader
- 3600 mAh
- IP66 · MIL-STD-810H · 6 ft drop (26 faces) · -20 °C to 60 °C · 8.0″ LCD (1280 x 800), 800 nits DynaVue sunlight readable, 10-point capacitive multi-touch, touch modes Finger/Water, Glove, Stylus; optional digitizer · 880 g
Suitable for
Zone 2/22 areas in chemical and petrochemical plants, oil & gas, pharma and logistics: operator rounds, permit-to-work, communication, scanning, documentation and remote assistance.
Globally certified
ATEX Zone 2/22 (Ex II 3G Ex ic IIC T4 Gc | Ex II 3D Ex ic IIIB T135°C Dc).
Additional information
| Brand | |
|---|---|
| Operating System | Windows 11 Pro 64-bit |
| Processor | Intel® Core™ i7-1250U (12th Gen) with vPro™ (12MB Cache, up to 4.7 GHz, 2P+8E cores) |
| Graphics | Intel® UHD Graphics |
| Communications | Intel® Wi-Fi 6E AX211 (802.11ax) |
| Power | AC adapter 100-240V, 50-60Hz, 65W |
| Keyboard & Input | 4 buttons (1 user-definable key) |
| Environment | Operating temperature: -20°C ~ 60°C |
| Dimensions | 227 mm (L) x 150 mm (W) x 20.5 mm (H) |
| Display | 8.0” LCD (1280 x 800) |
| Camera | Integrated 2.0 MP front-facing camera |
| SIM | Nano SIM card x 1 |
| Charging & I/O Ports | Thunderbolt 4 x 1 |
| Audio | Integrated microphone |
| Storage | 128GB NVMe PCIe SSD |
| Memory (RAM) | Onboard 8GB up to 16GB (LPDDR4x) |
| Rugged features | MIL-STD-810H certified (Drop, Shock, Vibration, Rain, Dust, Altitude, Freeze/Thaw, High/Low Temperature, Temperature Shock, Humidity, Explosive Atmosphere, Salt Fog) |
| Ex-Marking | ATEX Zone 2/22 certified |
| Geographic Certification | |
| Zone Classification | |
| Security | Intel® vPro™ Technology (per CPU options) |
| Warranty | 3-year limited warranty standard |
PDF Datasheet Viewer
Geographic suitability
Check the top-left corner of the product image for certifications. For the latest details, refer to the datasheet or contact us. Generally, these certifications apply to the following regions:
| Certification | Geography |
|---|---|
| NEC/CEC (Class/Division) | USA, Canada |
| NEC/CEC (Class/Zone) | USA, Canada |
| ATEX | Mandatory in EU, EEA, Turkey and United Kingdom. Accepted in most countries not listed elsewhere in this table. |
| INMETRO | Brazil (based on IECEx) |
| IECEx | Mandatory in Australia and Israel. Accepted in most countries not listed elsewhere in this table. |
Check our comprehensive guide on explosion proof equipment certifications and where they're recognized.
