Showing all 4 results

Cobic-Ex offers HMi’s by UK-based manufacturer HMi Elements.

HMI Elements offers superior HMI products, distinct in several key aspects:

Excellent Displays: The 1301 models boast 1000 Nit capacitive touch-screens, optimized for daylight viewing, glove-friendly usage, and resistance to water and debris.

Processing Power: The processors maintain top-speed performance (i7)

Maintenance-Friendly: These HMIs are designed for simple field maintenance, contrasting with competitors’ complex and delicate internal structures.

Robustness: the HMIs are rated IP66/NEMA 4X, ensuring superior water and ingress protection.

Flexibility and Customization: HMi Elements are a company dedicated to customer needs. They can integrate third-party electronics, offering customized solutions even in low volumes.

Transparent and Accessible Management: The company prides itself on transparency and easy accessibility to its management team.

Proven Track Record: With a history dating back to the late 1980s, HMI Elements has evolved to cater to diverse industries, constantly innovating and rebranding to meet changing needs and contexts.

Product Display Size ATEX Certification Processor Additional Features More Info

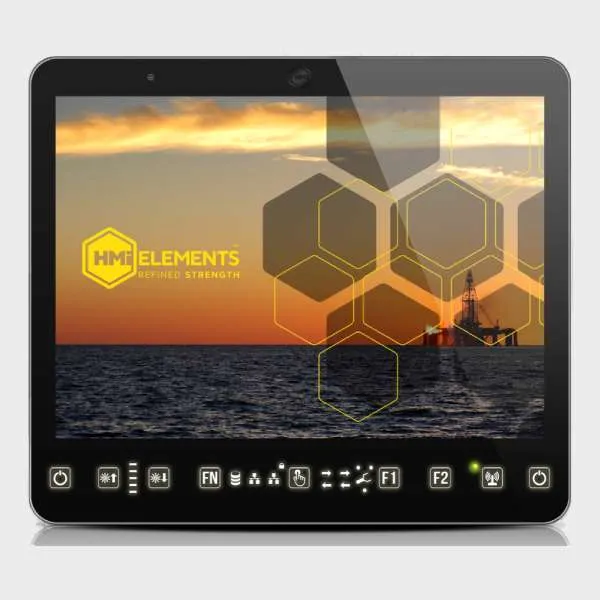

The HMi 1301-Z1 19″ Zone 1/21 Intel Core i7 1000 nit, IP66, -40°C to +60°C Link

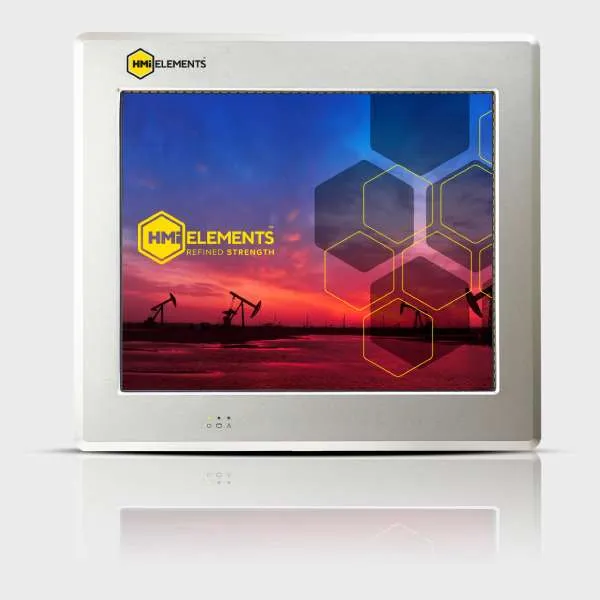

The HMi 1301-Z2 19″ Zone 2/22 Intel Core i7 1000 nit, Lightweight, -40°C to +60°C Link

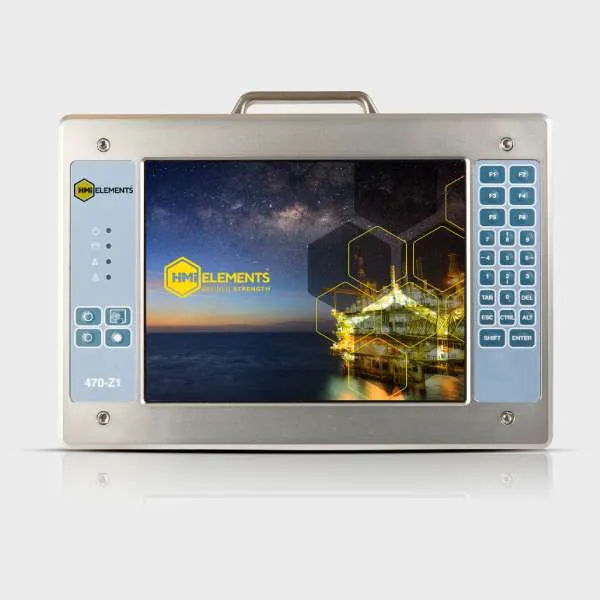

The HMi 470-Z1 12.1″ Zone 1/21 Quad Core N Series LCD Touchscreen, IP66/NEMA4X, -40°C to +60°C Link

Hazardous Area Computer Options

Below are the available options for configuring a hazardous area computer (1301 Zone 1 HMi). Each category offers different specifications to suit various requirements.

Category Options
Memory 8GB (2 x 4GB), 16GB (2 x 8GB), 32GB (2 x 16GB)
Storage 80GB SSD, 160GB SSD, 320GB SSD
Operating System None, Windows 10, Windows 7 Professional 64 bit
Wi-Fi Communications None, Wi-Fi Client Adapter 2.3GHz / 5.0 GHz
IS Horn Driver Output None, Horn Board
Fiber Connector None, Gland, Stran Fiber Connector, Geobeam Connector
USB None, USB (Rota Hotpluggable), Gland
Ethernet None, Gland (Connector / Line Bushing), Solexy BXF IS Connector, Solexy BXF Safe Area Connector, CEAG Connector, Instrumex Connector
Power Cable None, 3 metres, 9 metres
Bluetooth None, Bluetooth
Sunshield/Visor None, Sunshield Visor
Mounting None, Panel Mount, Yoke/Pedestal Mount, Desktop Mount
