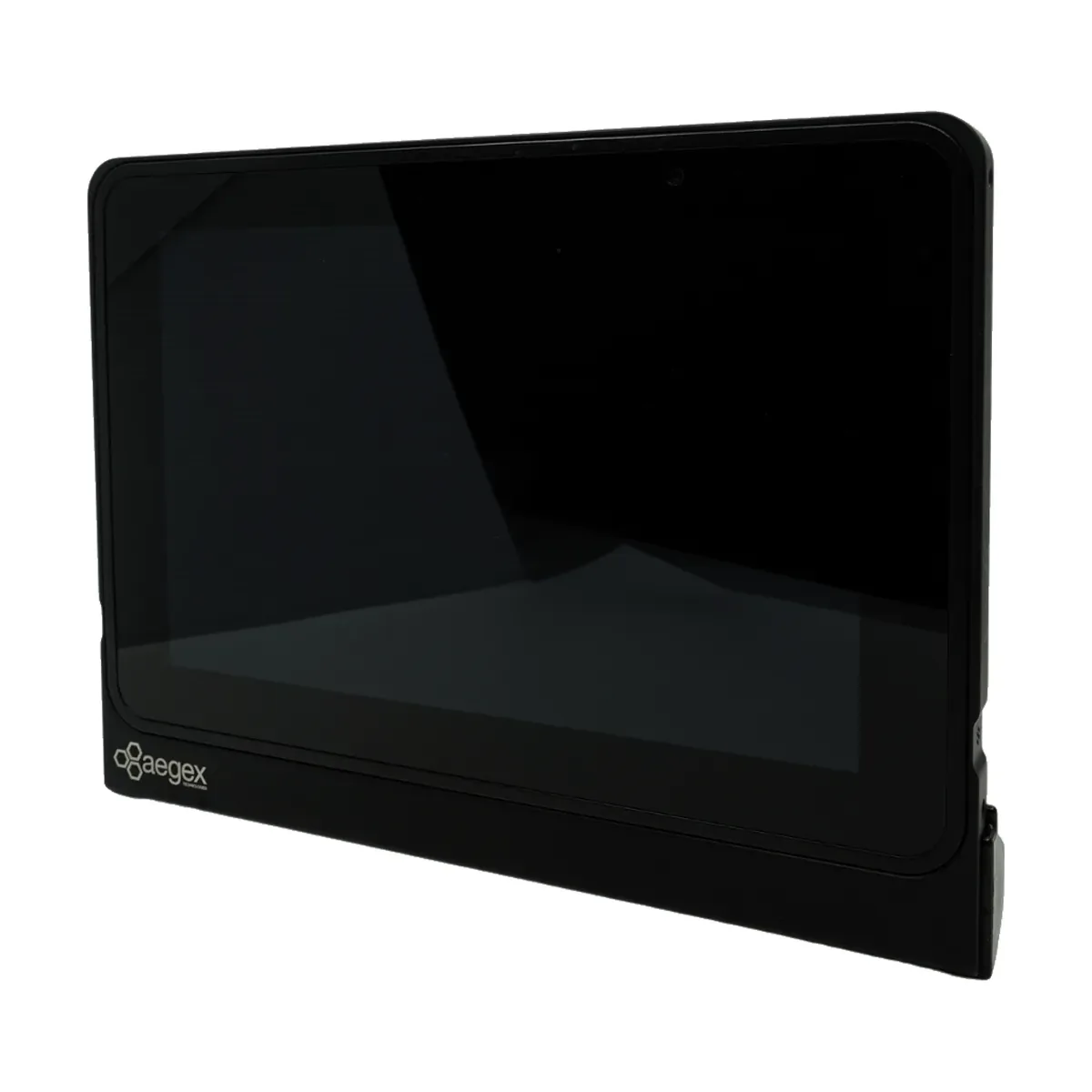

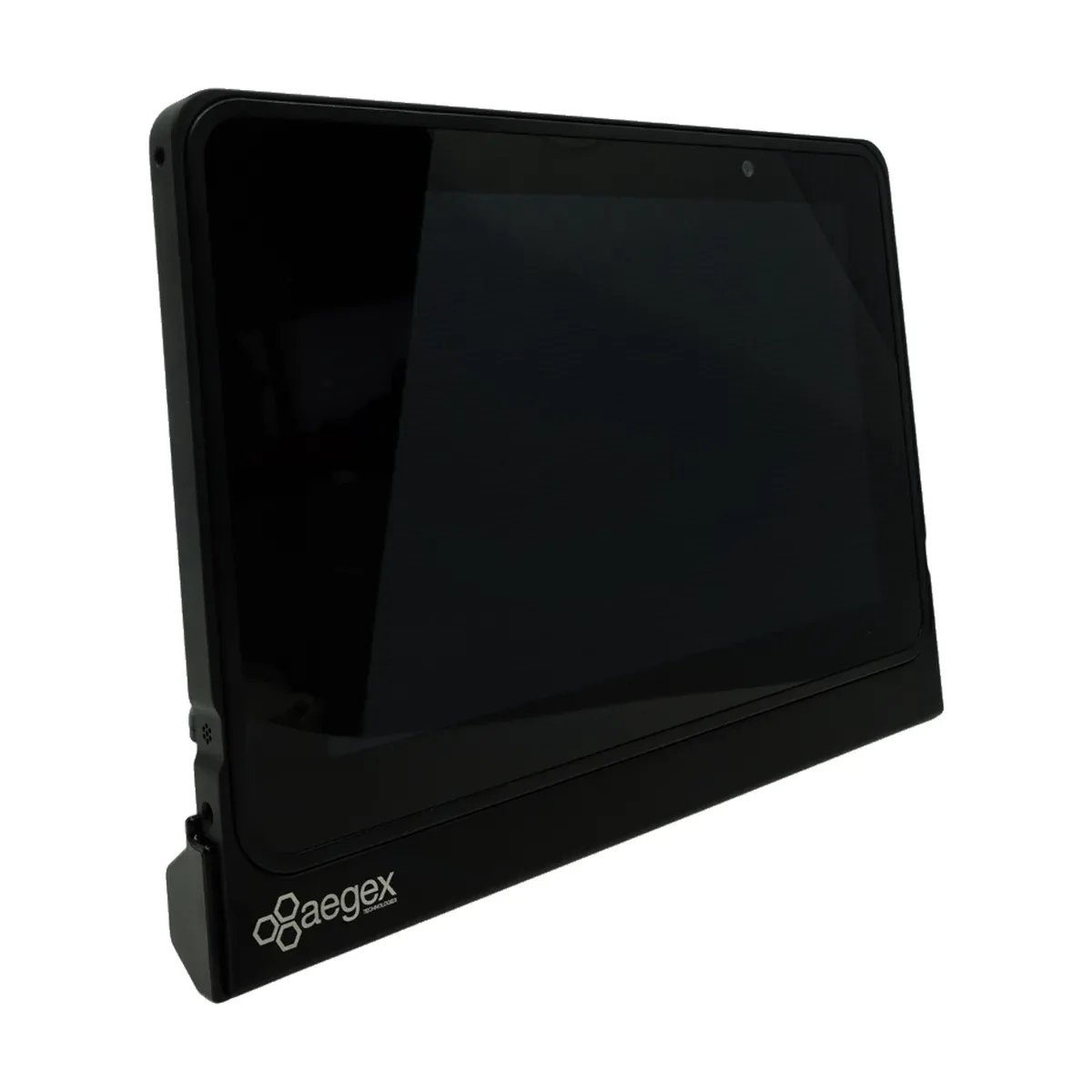

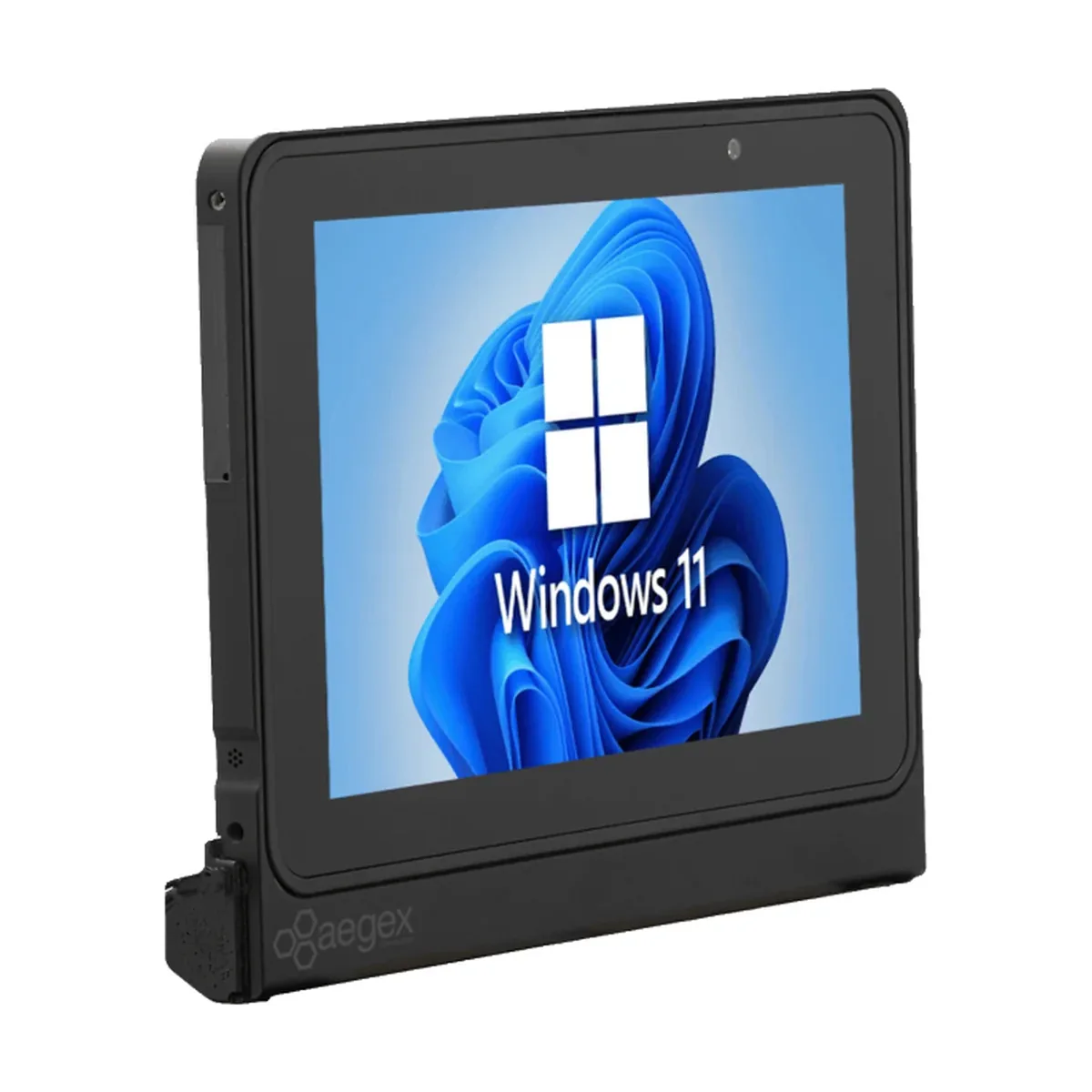

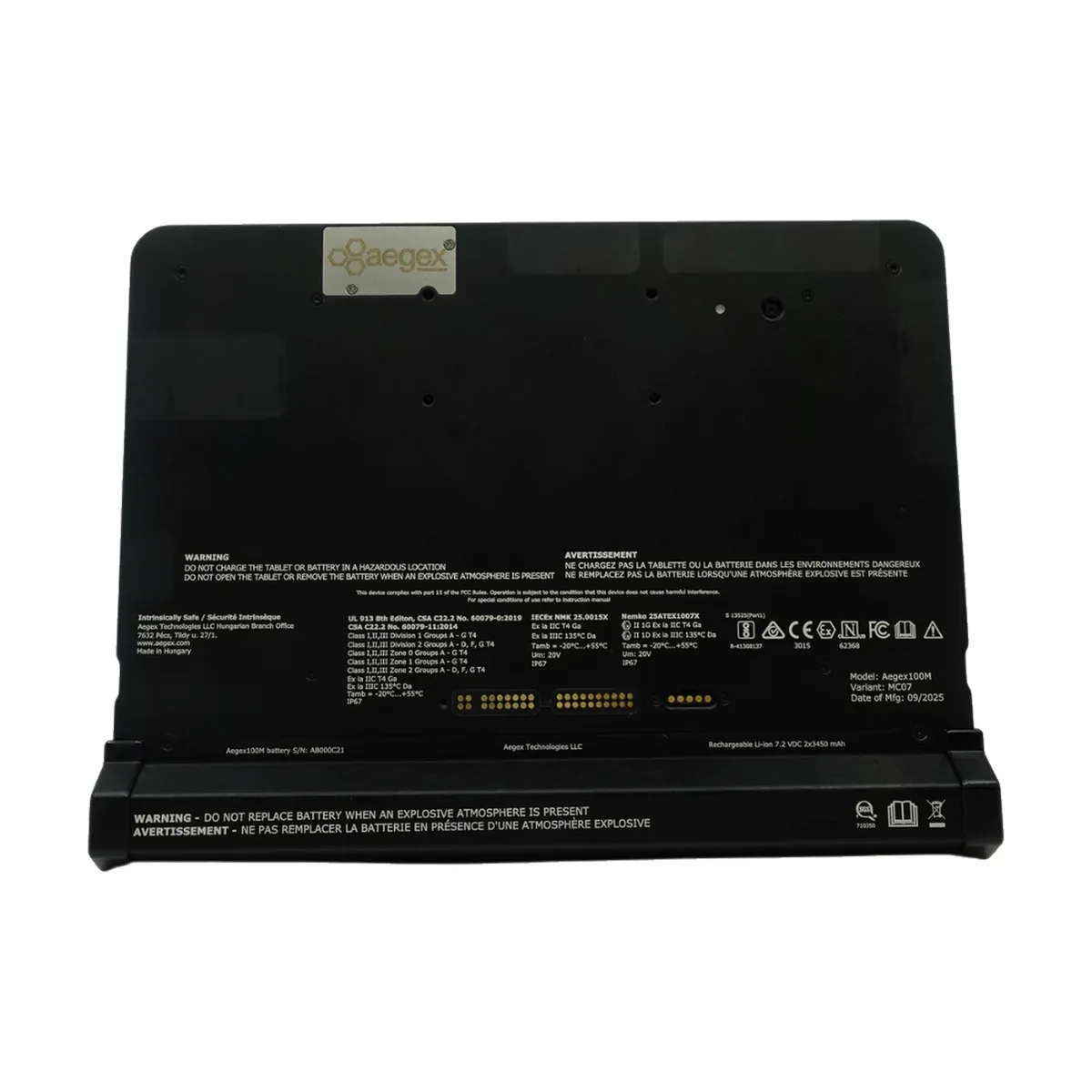

Aegex 100M Intrinsically Safe Tablet

€3,896.00

Aegex

Type: 100M

Ex-marking	II 1 GD Ex ia IIC T4 Ga \| Ex ia IIIC T135°C Da
Certification	ATEX & IECEx Zone 1/21 · Zone 0 possible with Zone 0 case
Ambient temperature	-20 °C to +55 °C
Zone 0 use	Only inside Aegex case APAC-100-01 (not included)
Configurations	WLAN or LTE · with or without camera
OS	Windows 11 IoT
Size	10.1″
Camera	8 MP AF rear with flash \| 2 MP front
Connectivity	Wi-Fi 802.11ac · Bluetooth 5.2 · NFC · GPS · optional LTE
Battery	2 x 3450 mAh
Availability	Not available until further notice

Categories: ATEX Tablet, Explosion Proof Products

Request A Quote

Description

Configurations & prices

Configuration	Order code	Price
WLAN · 8 MP camera	—	€ 3.896
WLAN · no camera	—	€ 4.144
LTE · 8 MP camera	—	€ 4.080
LTE · no camera	—	€ 4.327

Aegex 100M Intrinsically Safe Tablet · ATEX & IECEx Zone 1/21

The Aegex 100M is an intrinsically safe 10.1″ Windows 11 IoT tablet, certified under ATEX and IECEx with marking II 1 GD Ex ia IIC T4 Ga / Ex ia IIIC T135°C Da (Ta -20 °C to +55 °C). In Zone 0 the tablet must be used inside the Aegex case APAC-100-01, which is not included. It is available as WLAN or LTE version, each with or without camera. Specifications are taken from the Aegex datasheet and the Nemko ATEX and IECEx certificates.

Why the 100M Intrinsically Safe Tablet?

II 1 GD Ex ia IIC T4 Ga / Ex ia IIIC T135°C Da, IP67, -20 °C to +55 °C
Zone 0 only inside Aegex case APAC-100-01 (not included), as required by the certificates
10.1″ AHVA WQXGA display (2560 x 1600), 540 nits
Intel Quad-Core Atom E3940, 8 GB RAM, 256 GB storage, microSDXC up to 2 TB
Wi-Fi 802.11ac, Bluetooth 5.2, NFC, GPS; optional LTE-A Cat 12; 1430 g

Suitable for

Zone 1/21 areas (Zone 0 with Zone 0 case) in chemical and petrochemical plants, oil & gas, pharma and logistics: operator rounds, permit-to-work, communication, scanning, documentation and remote assistance.

Globally certified

ATEX and IECEx Zone 1/21, Zone 0 with Zone 0 case (II 1 GD Ex ia IIC T4 Ga | Ex ia IIIC T135°C Da) plus further country certifications where applicable.

Additional information

Brand	Aegex
Operating System	Windows 11 IoT
Configuration	WLAN / Camera, WLAN / No Camera, LTE / Camera, LTE / No Camera
Mobile Computing Platform	Intel® Quad-Core Atom™ E3940 Base 1.6GHz, Burst 1.8GHz
Wireless & LTE	Wi-Fi 802.11 a/b/g/n/ac Bluetooth 5.2 + HS NFC – Optional: Worldwide LTE-A Cat 12 and UMTS/HSPA+ GPS / GLONASS / Galileo
Video & Audio	Front-facing digital microphone array Stereo speakers
Sensors	Ambient light sensor, accelerometer, gyroscope, e-compass, SAR proximity sensor
Storage & Memory	8GB RAM 256GB storage MicroSDXC card slot (up to 2TB cards supported)
Security Feature	Intel® TXE Boot Guard 2.0 FW TPM (Intel® PTT) Intel® Trusted Execution Engine Interface (TXEI) driver Intel AES New Instructions BitLocker
Software	Windows 11 IoT – Optional: AegexScan™ barcode scanning application
Dimensions & Weight	278 x 207 x 13.8 mm (without battery) 278 x 207 x 28.3 mm (at battery section) 1430 g
In the Box	Tablet charger (12VDC 3.33A power supply, adaptor) Shoulder strap Stylus
Ex Markings	ATEX: II 1 GD Ex ia IIC T4 Ga / Ex ia IIIC T135°C Da, Tamb -20°C to 55°C IECEx: Ex ia IIC T4 Ga / Ex ia IIIC T135°C Da, Ta -20°C to 55°C IP67, Um 20V
Certificates	ATEX: Nemko 25ATEX1007X IECEx: IECEx NMK 25.0015X
Standards	ATEX: EN IEC 60079-0:2018, EN 60079-11:2012 IECEx: IEC 60079-0:2017 (Ed. 7.0), IEC 60079-11:2023 (Ed. 7.0)
Special conditions	In Zone 0 use only inside Aegex case APAC-100-01 Do not remove or replace the battery pack (P/N AAEB-100-xx) in hazardous areas Charge only on the tablet with Aegex charger AAAK-0xx-01, outside hazardous areas Do not open the SIM / SD card port, or connect or disconnect the tablet, in hazardous areas No accessories or extensions in hazardous areas Avoid friction from direct contact with the enclosure; do not use when damaged or deformed Service by Aegex only
Geographic Certification	ATEX, Classes & Divisions, IECEx
Zone Classification	Div 1, Zone 0, Zone 1, Zone 21
Processor	Intel Quad-Core Atom Processor
Memory	Memory:8 GB RAM Storage: 256 GB internal storage Expandable via microSDXC up to 2 TB
Frequencies	3G WCDMA: B1 / B2 / B3 / B4 / B5 / B6 / B8 / B19 4G LTE-FDD: B1 / B2 / B3 / B4 / B5 / B7 / B8 / B12 / B13 / B14 / B17 / B18 / B19 / B20 / B25 / B26 / B28 / B29 / B30 / B32 / B66 4G LTE-TDD: B38 / B39 / B40 / B41 / B42 / B43 / B46 (LAA) / B48 (CBRS) Wi-Fi: 802.11 a/b/g/n/ac (2.4 GHz + 5 GHz) Bluetooth: 5.2 + HS NFC: 13.56 MHz (standard) GNSS: GPS / GLONASS / Galileo
Dimensions	size: 278 × 207 × 28.3 mm, weight: 1430 g
Display	10.1" / 25.6 cm AHVA display WQXGA (2560 x 1600 px) Contrast 1000:1 (min. 800:1) Brightness 540 nits Viewing angle (up/down, left/right) 170° 16.7M colors
Battery	7.2V 2 x 3450mAh, 49.68Wh rechargeable Li-ion Charging: 0-90% in 3.5 hours, 100% in approx. 4.5 hours
Camera	Rear: 8MP auto-focus with flash, image 3264 x 2448 px, video 1080p 30 fps Front: image 1920 x 1080 px, video 1080p 30 fps – Optional: version without camera
Connections	Magnetic pin connector for charging with Aegex Wall Charger Docking connector supports LAN, USB 2.0, 3.0, USB-C, HDMI, SD card and audio jack VESA mount FDMI MIS-C 75 x 35 mm (M4 x 8 mm screws)
Types of protection	IP67 dust-/waterproof, rugged industrial design, usable from –20 °C to +55 °C

PDF Datasheet Viewer

aegex-aegex100m-datasheet

Geographic suitability

Check the top-left corner of the product image for certifications. For the latest details, refer to the datasheet or contact us. Generally, these certifications apply to the following regions:

Certification	Geography
NEC/CEC (Class/Division)	USA, Canada
NEC/CEC (Class/Zone)	USA, Canada
ATEX	Mandatory in EU, EEA, Turkey and United Kingdom. Accepted in most countries not listed elsewhere in this table.
INMETRO	Brazil (based on IECEx)
IECEx	Mandatory in Australia and Israel. Accepted in most countries not listed elsewhere in this table.

Check our comprehensive guide on explosion proof equipment certifications and where they’re recognized.
